Hundegger TURBO-Drive
High-performance cutting for all areas of woodworking
TURBO-Drive is the right answer when faster and more flexible cutting is required.
In addition, the machine can carry out drilling and milling work and markings of all kinds.
The heart of the machine is the flexible saw unit which can make cuts at any angle and inclination.
Thanks to its compact design, the machine is optimally encapsulated to prevent dust and noise emission and can also be installed on a concrete floor without the need for additional building measures.
Flexible
For timber cross-sections of 20 x 40 to 160 x 450 mm in any timber length.
THE HIGHLIGHTS OF THE TURBO-Drive
In addition to all conceivable chop, mitre and compound cuts, the 5-axis saw unit which can be pivoted through 360° and at the same time tilted by 90° also enables birdsmouths, roof ridge joints, eaves formwork notches, scarf joints and so on to be made quickly, precisely and in high quality.
The TURBO-Drive can be equipped with two vertically operating units. A 7.5 kW milling and drilling unit for milling rebates, recesses or freely programmable profiles as well as a 2.2 kW drilling unit for producing through or blind holes are available. Several part stacked on top of each other can not only be cut to size, but in many cases completely finished in a single pass.
Pivoting saw
Unlike a solution with an undertable pivoting saw, the saw blade can move with its axis below the workpiece fixing height and thus make horizontal slots at any angle and in all required sizes.
Vertical units
The TURBO-Drive can be extended at any time, even after installation, with up to two vertically operating units.
- Any timber length with cross sections from 20 x 40 mm up to 160 x 450 mm
- Connectable to infeed systems
- Automatic timber discharge
- Data interface
- Upgradeable
VIDEO TURBO-Drive
Download
TURBO-Drive machining examples
Fast cutting with additional machining options
HIGH PERFORMANCE CUTTING
When cutting girder parts or timber frame construction parts an unparalleled speed is achieved at full flexibility and precision.
OPTIONAL FLEXIBILITY
Even with the standard equipment, simple wooden parts can be joined with a saw unit. With further additional units, which can be retrofitted thanks to the modular system, the flexibility of the machine increases enormously.
The HUNDEGGER System - flexible and precise
Fast cutting with additional machining options
TURBO-Drive
The solution when fast, flexible and precise cutting is required

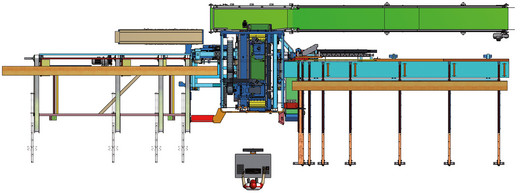

Automation of the Hundegger TURBO-Drive
Flexible thanks to a modular system
Infeed cross conveyor
The user can place several pieces of timber on an infeed cross conveyor at the same time. These are automatically separated by the TURBO-Drive and fed into the machining zone without damage, while the operator can turn to other tasks.
Cross conveyor system
A cross conveyor system is available for buffering the finished workpieces at machine outlet.
