Hundegger PBA-Drive 3600
From the CAD drawing to the finished component
Depending on the equipment and tool, the PBA-Drive 3600 panel processing machine can be used to format panels on the end face and long sides and produce rebates, grooves and openings on the underside of the panel. Parts positioned on a chain conveyor can be processed from 6 sides.
Flexibility in one single machine
The PBA-Drive 3600 machining center is designed for formatting and machining CLT elements with a thickness of up to Z = 40 cm, a maximum width of Y = 3,66 m and a length of X = 16.5 m with no restrictions regarding end-face operations.
The machine is equipped according to respective specific operating requirements. Units and options can be retrofitted at any time.
THE HIGHLIGHTS OF THE PBA-Drive 3600
PBA-Drive 3600 combines the functionality of UFA- and PBA-product family in one single machine and is the economical solution for CLT processing already at smaller output.
In addition to state-of-the-art machine technology and CAMBIUM® production and control software specially developed in-house for timber construction without interface problems, we also offer you a comprehensive range of services.
- CAMBIUM® Core as system for job preparation | production planning | control and monitoring of machine
- CAMBIUM® COMMAND and CAMBIUM® AUTOMATE completely adjustable to the specific material flow and level of automation
- CAMBIUM® COCKPIT as central system across all machines for operation and monitoring
Machine cabin
The machine cabin encapsulates the machining area in the best possible way to prevent chips from flying around freely.
Power: 63 kW

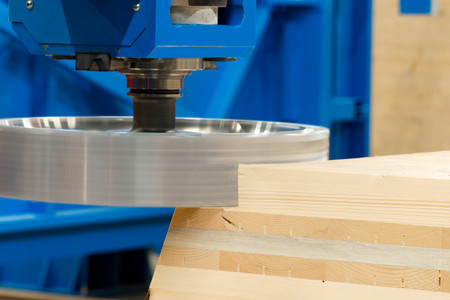

The 5-axis unit can process all 6 sides of the part in one single pass.
Power: 43 kW
Powerfull 3-axis-milling aggregate 43 kW and deep hole drilling unit horizontal 4 kW
- Process all 6 sides of the part in one single pass
- Tool magazine with up to 26 different tools
- High efficient processing
- For large panels up to 3.66 m wide and 40 cm thickness
- Combines the functionality of UFA- and PBA-product family in one single machine
VIDEO PBA-Drive
Flexibility in one single machine
From the CAD drawing to the finished component
TRAVEL SPEEDS
Maximum Travel Speeds:
- X-axis approx. 20 m/min
- Y-axis approx. 60 m/min
- Z-axis approx. 30 m/min
BASICS
Die Basismaschine ist standardmäßig zur Bearbeitung folgender Werkstückdimensionen ausgelegt:
Machinable raw part dimensions (with max. tool dimension):
• Length = min. 4.000 mm - max. depending on the rail length
• Width = min. 1.250 mm - max 3.660 mm
• Height = min. 60 mm - max. 400 mm
Main unit
5-axis aggregate with 63 kW and tool changing system
