Panel processing centre PBA-X Processing examples TECHNOLOGY AUTOMATION
Hundegger PBA-X

The flexible processing centre for large components

The Hundegger PBA-X gantry system combines a forwardlooking, modular machine concept with powerful drives, creating an ultra-modern processing centre for CLT and glulam applications.

With its 5-axis and 3-axis powerhouse units, the PBA-X opens up an impressive range of machining options catering to every need.
From CLT elements through to challenging laminatedgirder parts, the PBA-X handles even the most complex timber construction projects with ease.

The innovative CAMBIUM® multi-panel operation enables parts of varying cross-sections and dimensions to be grouped efficiently on the processing table and produced together in one production lot with minimal waste.

The Hundegger PBA-X is available in three powerful versions:

  • Hundegger PBA-X 3100
  • Hundegger PBA-X 3600
  • Hundegger PBA-X 4600

Multi-machining

Thanks to intelligent multi-machining, several machines can be interconnected. This leads to a continuous workflow and plays an important part in optimizing the production processes.

THE HIGHLIGHTS OF THE PBA-X 3100 I 3600 I 4600

Maximum processing dimensions (raw part)

  • Length = dependent on the rail length
  • Width = 3500 I 4000 I 5000 mm dependent on version
  • Height = 650 mm


THe compact and powerful 5-axis spindle unit offers performance of 35 kW and continuous speed control from 0 to 12,000 rpm. This allows the optimum use of both large tools, such as saw blades, at low rotational speeds, as well as smaller end mills, which require high rotational speeds for optimal performance.

With the 3-axis milling and drilling units, our system offers maximum flexibility and efficiency. They help you extend your machining options, while at the same time contributing to optimized production times.

The TORNADO cleaning system, which can travel on the gantry or be installed as a stationary unit at the outfeed, effectively removes chips and dust from your parts. Even the deepest pockets and machined areas are thoroughly cleaned by the three-way system to ensure maximum cleanliness and quality in production.
The gantry of the PBA-X and the tool holders move over the parts in the X and Y direction on high-quality linear guides and thus form an optimum connection between tool frame and the rail transport system. To prevent sawdust from entering, all linear guide carriages are excellently protected by special seals.. To minimize maintenance and maintain continiuos production the machine is equipped with a fully automatic central lubrication system.

Machine cabin

The gantry of the PBA-X and the tool holders move over the parts in the X and Y direction on high-quality linear guides and thus form an optimum connection between tool frame and the rail transport system.

35 kW performance

5-Achs-Säge

5-axis unit for operations on all 6 sides of the part with continuously adjustable speed range from 0 to 12,000 rpm.

Tool change system

Tool change system with standard tools including basic magazine with up to 50 tool slots

HOW YOU BENEFIT:
  • For components up to 5.0 m wide and 65 cm thick
  • Efficient processing of any cuts, milled and drilled holes
  • Freely configurable tool magazine
  • Deep-hole drilling on 4 component sides up to an angle of ± 30°
VIDEO PBA-X

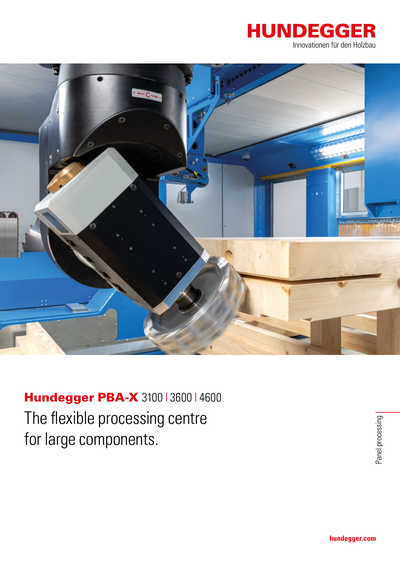

Download PBA-X

Processing examples PBA-X

Complete processing of CLT and Glulam

One machine for all production concepts - from single-station to multi-station and throughfeed machines.
The PBA-X combines all production concepts in a single machine and guarantees maximum flexibility in terms of placement. Whether single-station, multi-station or throughfeed production - the machine adapts optimally to your specific requirements and offers a perfect solution for every production environment.

High-performance units for individual applications

Bauteil PBA-x
5-Achs-Säge

Precise and productive

High-performance units for individual applications

The Hundegger PBA-X gantry system combines a forwardlooking, modular machine concept with powerful drives, creating an ultra-modern processing centre for CLT and glulam applications.

With its 5-axis and 3-axis powerhouse units, the PBA-X opens up an impressive range of machining options catering to every need. From CLT elements through to challenging laminatedgirder parts, the PBA-X handles even the most complex timber construction projects with ease.

Main Unit

5-Achs-Säge

5-axis unit with 35 kW performance and tool magazine


Options

In addition to the basic version, the PBA-X offers various options

INSTALLATION VERSIONS

One machine for all manufacturing concepts – singlestation and multi-station through to pass-through machine.

The PBA-X combines all production concepts in a single machine, and provides for maximum placement (layout) flexibility. The machine can be optimally adapted to your specific requirements, whether you require singlestation, multi-station or pass-through production, and offers the perfect solution for every production environment.



Single-station solution – compact efficiency over the smallest space

The single-station solution offers maximum functionality with minimal footprint and is ideal for individual work processes. It brings together all the required functions at a single, user-friendly work station.

Multi-station solution – versatility meets large work area

A modular table offers a large work area that can be optimized and flexibly adapted to your needs. Ideal for extensive projects and various applications, it can be configured to different tasks and workpieces.

Pass-through solution – seamless production without interruptions

The pass-through solution optimizes your production process by ensuring a continuous material flow. Ideal for efficient processing, this solution enables the part to pass through uninterrupted, and offers shorter waiting times and significantly higher productivity.

Automation of the Hundegger PBA-X

Flexibility and efficiency for your production requirements

SMART DYNAMIC PROCESSING TABLES

Flexibility and efficiency are decisive factors for the success of modern production processes. A smooth flow of material plays a central role here. The innovative PBA-X processing tables combine smart technology with robust design and can thus be optimally adjusted to your specific production requirements.

Stationary table system

The fixed part supports can be effortlessly moved along a rail and are equipped with a practical quick-clamp function. This combination provides for fast and flexible setup and production.

Processing tables with castors

Driven rollers over the entire machine zone enable parts to be fed in and ejected automatically. This guarantees a smooth and constant material flow without manual intervention.

Efficient handling with the vacuum tabletop – precision thanks to smart technology

Heavy-duty rollers ensure effortless feeding, enabling your parts to be positioned automatically, quickly and accurately. A panel is lifted by up to 400 mm and securely fixed by vacuum on the table, while the pods are automatically lowered if required to allow machine access.

Intelligent part handling – efficiency at the highest level

The intelligent CAMBIUM® control system in combination with the smart vacuum tabletop complete practically all machining operations for you in just a single clamping operation. For optimum efficiency, adjacent parts are automatically lowered, if required. Maximum precision – minimum intervention.
