Hundegger UFA-Industry

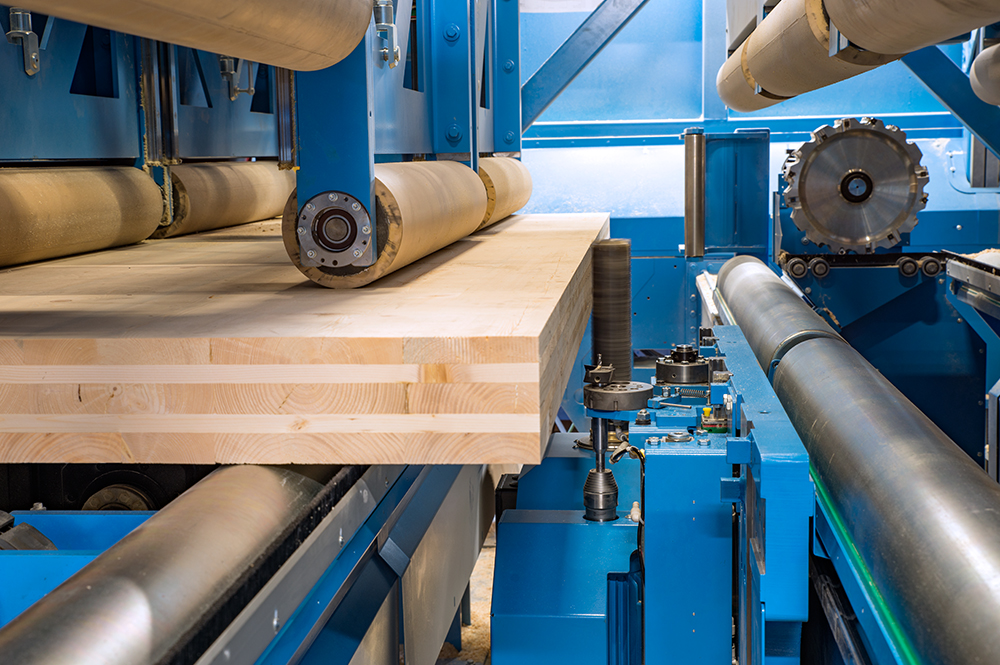

Format CLT elements and finish processing them on the underside

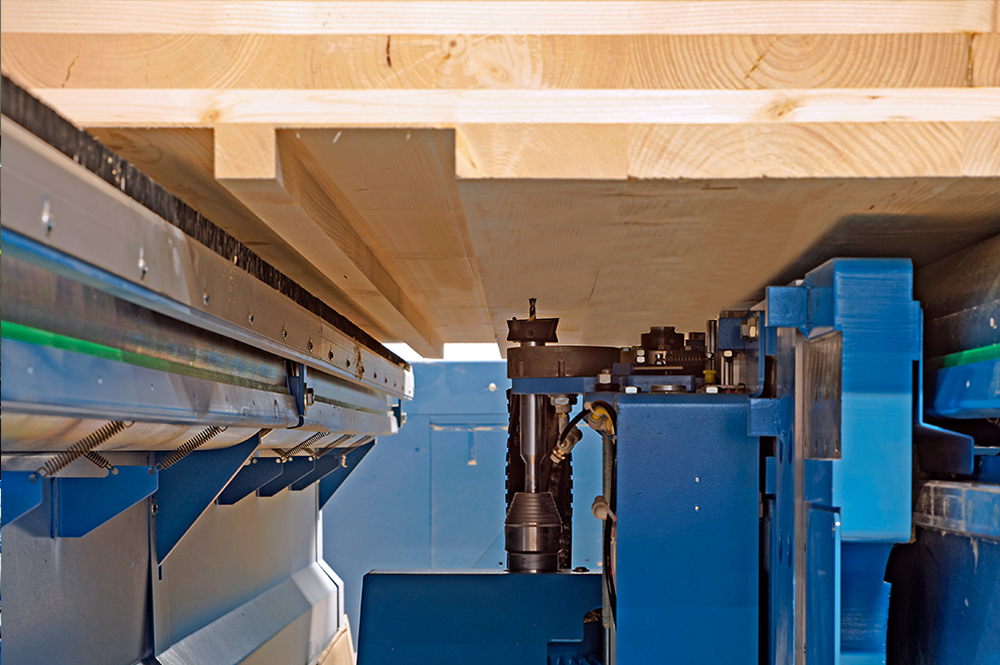

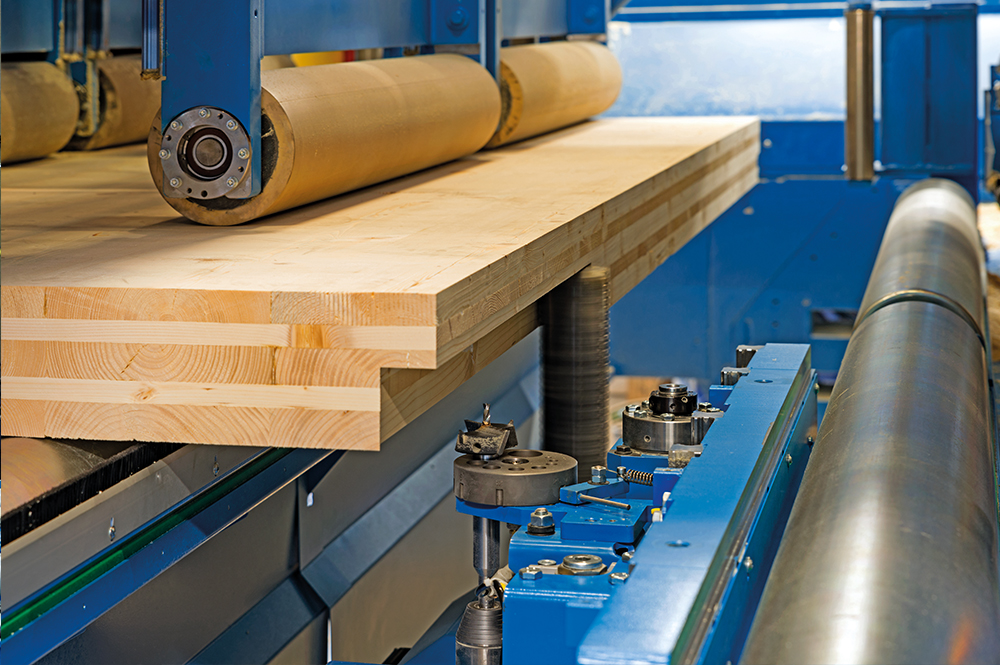

Depending on the equipment and tool, the UFA panel processing machine can be used to format panels on the end face and long sides and produce rebates, grooves and openings on the underside of the panel. Parts positioned on a chain conveyor are processed from below or the 4 sides. The machine is equipped according to respective specific operating requirements. Units and options can be retrofitted at any time.
THE HIGHLIGHTS OF THE UFA-INDUSTRY
State-of-the-art mechanical engineering
The UFA machining center is designed for formatting and machining CLT elements with a thickness of up to Z = 37 cm, a maximum width of Y = 360 cm and a length of X = 16.5 m with no restrictions regarding end-face operations.<br/> The machine is equipped according to respective specific operating requirements. Units and options can be retrofitted at any time.
In addition to state-of-the-art machine technology and CAMBIUM® production and control software specially developed in-house for timber construction without interface problems, we also offer you a comprehensive range of services.

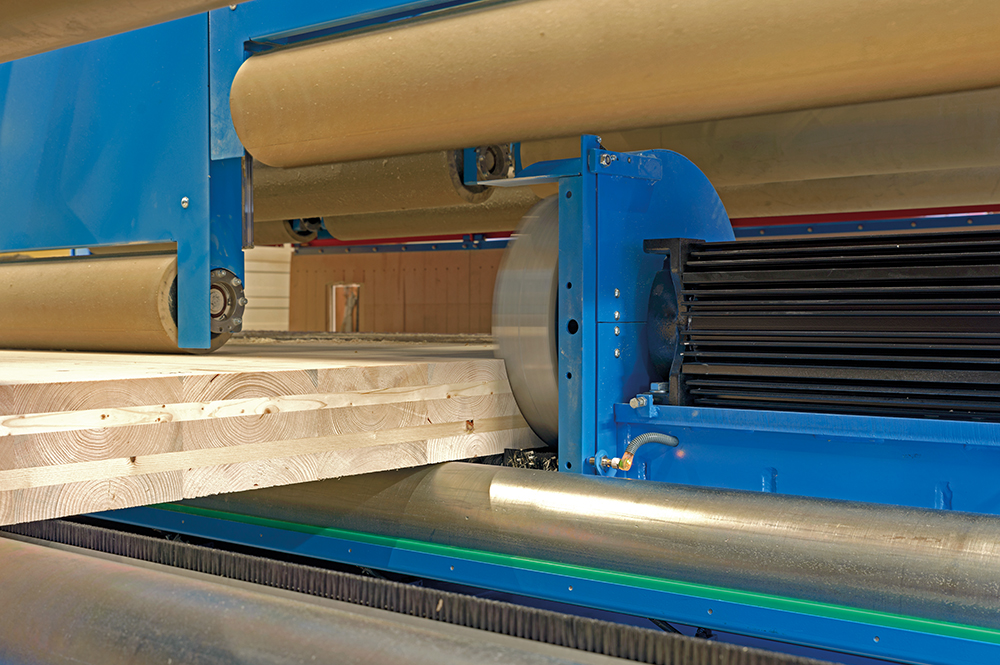

Trimming unit
Power and precision with up to 22 kW, machining on both sides
Milling units
43 kW and a speed of 12,000 rpm
PROCESS CHAIN

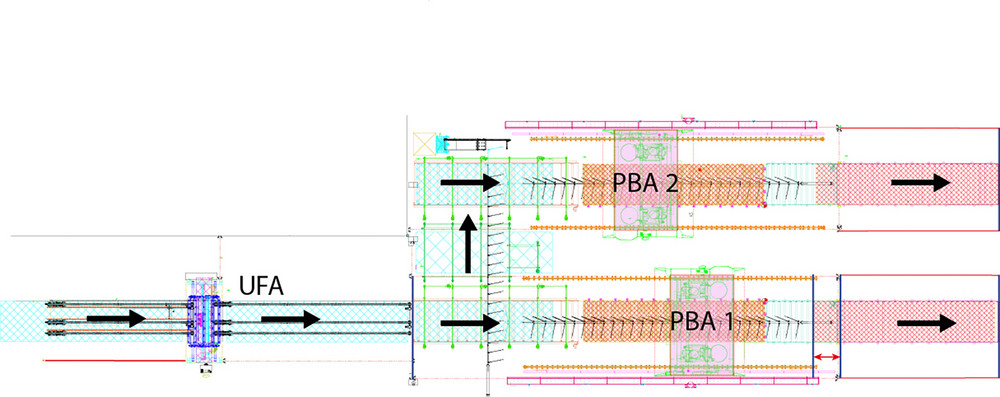

The UFA machining centre closes the process chain for the effective machining of CLT elements.
The UFA machining centre can operate up to two PBA series panel processing machines with panels already formatted and machined from below. The time-consuming turning of the parts is thus no longer necessary and saves an enormous amount of time.
VIDEO UFA-Industry
UFA-Industry machining examples
Benefit from unlimited machining versatility
No turning of large CLT elements
The UFA machining centre closes the process chain for the effective machining of CLT elements.
The UFA machining centre can operate up to two PBA series panel processing machines with panels already formatted and machined from below. The time-consuming turning of the parts is thus no longer necessary and saves an enormous amount of time.
OPTIMIZED PANEL PROCESSING
With powerful and speed-optimized units, CLT elements with a thickness of up to 30 cm are formatted and machined from below. The further processing of the elements on a PBA-E or PBA-Industry panel processing machine is carried out across machines by the Hundegger CAMBIUM® program.
Modular equipment
Can be individually adapted to your needs
SPEED
Max. achievable traversing speeds:
• X-axis approx. 60 m/min
• Y-axis approx. 60 m/min
• Z-axes approx. 30 m/min
Main units
A wide variety of units for optimal use
Options
The modular system offers a range of technical options

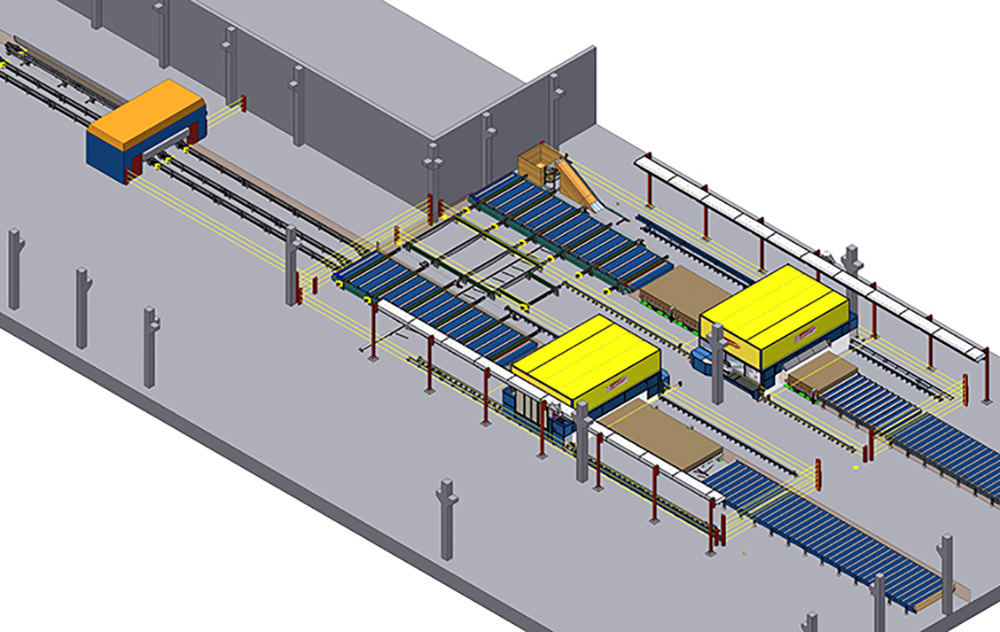

System CLT 4.0
PROCESS CHAIN
The UFA machining centre closes the process chain for the effective machining of CLT elements.
The UFA machining centre can operate up to two PBA series panel processing machines with panels already formatted and machined from below. The time-consuming turning of the parts is thus no longer necessary and saves an enormous amount of time.
